RFMV5X系列化五軸立式加工中心

通用工具機械系列

立式加工中心系列

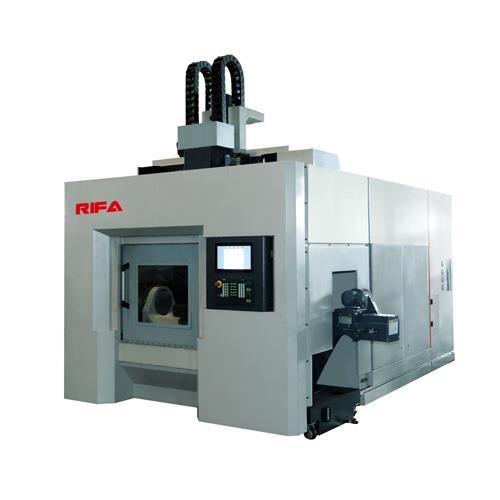

RFMV5X系列化五軸立式加工中心RFMV5X series five axis vertical machining center

產品簡介

采用高剛性小龍門立壁框架箱式對稱結構，工作臺直接支承在床身導軌上，整機剛性強。
The high rigidity small double column vertical wall frame box type symmetrical structure is adopted, and the workbench is directly supported on the bed guide rail, so the whole machine has strong rigidity.

結構特點

規格參數

1．采用高剛性小龍門立壁框架箱式對稱結構，工作臺直接支承在床身導軌上，整機剛性強。
2．主軸采用臺灣梳格高速電主軸，最高轉速可達36000rpm;電主軸軸承采用油氣潤滑，主軸外套采用恒溫冷卻,確保主軸運行穩定可靠。
3． X、Z軸導軌采用日本THK的SRG滾柱導軌，Y軸導軌采用THK的NRS滾珠導軌。
4．三軸絲桿均采用日本THK的高速精密絲桿，采用預拉伸結構和FAG精密軸承支承。
5．配置搖籃式雙軸高精度數控回轉臺，可進行空間復雜曲面精密加工。
6．機床X軸防護罩采用高速風琴防護罩結構,Y軸采用不銹鋼帶連桿機構的高速防護罩結構,Z軸防護罩直接用鈑金罩防護,三軸坐標快速移動速度最高可達48米/分。
7．機床排屑采用床身兩側螺旋式自動排屑加后端鏈板式自動排屑的方式。
8．刀庫標準采用ATC高速機械凸輪式刀庫，多種刀庫供選。
9．標配刀具外冷系統和床身沖屑裝置。
10．主軸選配中心冷卻系統 ,中心出水壓力可達20ba.
11．選配三軸海德漢光柵尺。
12．標準系統配置為FANUC31i-MA系統，多種系統供選擇。
1. the high rigidity small double column vertical wall frame box type symmetrical structure is adopted, and the workbench is directly supported on the guide rail of the bed. The rigidity of the whole machine is strong.
2. the spindle adopts Taiwan comb grid high-speed motorized spindle, and the maximum speed can reach 36000rpm; The electric spindle bearing is lubricated by oil and air, and the spindle outer sleeve is cooled by constant temperature to ensure the stable and reliable operation of the spindle.
3. The x-axis and z-axis guide rails adopt Japan THK SRG roller guide rails, and the y-axis guide rails adopt THK NRS ball guide rails.
4. the three-axis screw rod adopts the high-speed precision screw rod of Japan THK, and adopts the pre stretching structure and fag precision bearing support.
5. it is equipped with a cradle type double axis high-precision CNC rotary table, which can carry out precision machining of spatial complex surfaces.
6. the x-axis protective cover of the machine tool adopts the high-speed organ protective cover structure, the y-axis adopts the high-speed protective cover structure of stainless steel with connecting rod mechanism, and the z-axis protective cover is directly protected by the sheet metal cover. The rapid movement speed of the three-axis coordinate can reach up to 48 m / min.
7. the machine tool adopts the method of screw type automatic chip removal on both sides of the machine body and rear chain plate type automatic chip removal.
8. ATC high-speed mechanical cam type tool magazine is adopted as the tool magazine standard, and a variety of tool magazines are available.
9. tool external cooling system and bed chip punching device are standard.
10. the main shaft is equipped with a central cooling system, and the central water outlet pressure can reach 20ba
11. three axis Heidenhain grating ruler is selected.
12. the standard system configuration is fanuc31i Ma system, and a variety of systems are available for selection.

規格
RFMV60-5XP	工作臺直徑table diameter Φ540mm 工作臺最大承重(水平0°)Max load （horizontal 0° ）400KG 工作臺最大承重(傾斜0°-90°)Max load （declining 0°-90° ）120KG A軸擺動范圍 A axis angle range ±130 C軸回轉范圍 C axis angle range 360 橫梁前后移動距離（Y軸）Yaxis 1000mm 滑板左右移動距離（X軸）Xaxis 650mm 滑枕上下移動距離（Z軸）Zaxis 450mm A/C軸驅動方式 A/C axis driven way 力矩電機直驅Torque motor direct drive A/C軸扭矩 A/C axis torque 1758/600Nm 主軸端面至工作臺面距離 Distance from Spindle Face to Table Surface 最大 max 690mm 最小 min140mm 錐孔taper 140mm 最高轉速 Max speed 18000r/min 額定扭矩 rated torque 67Nm 額定功率 rated power 28KW	切削速度Cutting feed rates X,Y,Z軸 1-10000mm/min A、C軸 40/60rpm 快移速度Cutting feed ratesX,Y,Z軸 48/40/48mm/min A、C軸 40/60rpm 最小分辨率Min resolutionX,Y,Z軸 0.0001mm/min A、C軸 0.0001 刀庫容量tool capacity 30把刀庫形式ATC type 鏈式無手刀庫Chain type handless tool magazine 刀柄形式tool shank HSK-63A 刀具最大重量 Max tool weight 8kg 刀具最大直徑Max tool diameter 75（滿刀狀態）(full position) 機床定位精度position accuracyX，Y，Z軸 axis 0.005mm 機床定位精度position accuracyA,C軸axis 6″ 重復定位精度repeating accuracyX,Y,Z軸axis 0.003mm 重復定位精度repeating accuracyA、C軸axis 4″ 全閉環控制Full closed loop controlX,Y,Z軸axis 標配standard 全閉環控制Full closed loop controlA、C軸axis 標配standard 數控系統control system SIEMENS 840DSL 總用壓縮空氣量 total air volume 600L/min 壓縮空氣壓力air pressure 0.65MPA
RFMV80-5XP	工作臺直徑table diameter Φ630mm 工作臺最大承重(水平0°)Max load （horizontal 0° ）500KG 工作臺最大承重(傾斜0°-90°)Max load （declining 0°-90° ）150KG A軸擺動范圍 A axis angle range ±130 C軸回轉范圍 C axis angle range 360 橫梁前后移動距離（Y軸）Yaxis 1200mm 滑板左右移動距離（X軸）Xaxis 800mm 滑枕上下移動距離（Z軸）Zaxis 550mm A/C軸驅動方式 A/C axis driven way 力矩電機直驅Torque motor direct drive A/C軸扭矩 A/C axis torque 1758/600Nm 主軸端面至工作臺面距離 Distance from Spindle Face to Table Surface 最大 max 690mm 最小 min140mm 錐孔taper 140mm 最高轉速 Max speed 18000r/min 額定扭矩 rated torque 67Nm 額定功率 rated power 28KW	切削速度Cutting feed rates X,Y,Z軸 1-10000mm/min A、C軸 40/60rpm 快移速度Cutting feed ratesX,Y,Z軸 48/40/48mm/min A、C軸 40/60rpm 最小分辨率Min resolutionX,Y,Z軸 0.0001mm/min A、C軸 0.0001 刀庫容量tool capacity 30把刀庫形式ATC type 鏈式無手刀庫Chain type handless tool magazine 刀柄形式tool shank HSK-63A 刀具最大重量 Max tool weight 8kg 刀具最大直徑Max tool diameter 75（滿刀狀態）(full position) 機床定位精度position accuracyX，Y，Z軸 axis 0.005mm 機床定位精度position accuracyA,C軸axis 6″ 重復定位精度repeating accuracyX,Y,Z軸axis 0.003mm 重復定位精度repeating accuracyA、C軸axis 4″ 全閉環控制Full closed loop controlX,Y,Z軸axis 標配standard 全閉環控制Full closed loop controlA、C軸axis 標配standard 數控系統control system SIEMENS 840DSL 總用壓縮空氣量 total air volume 600L/min 壓縮空氣壓力air pressure 0.65MPA
